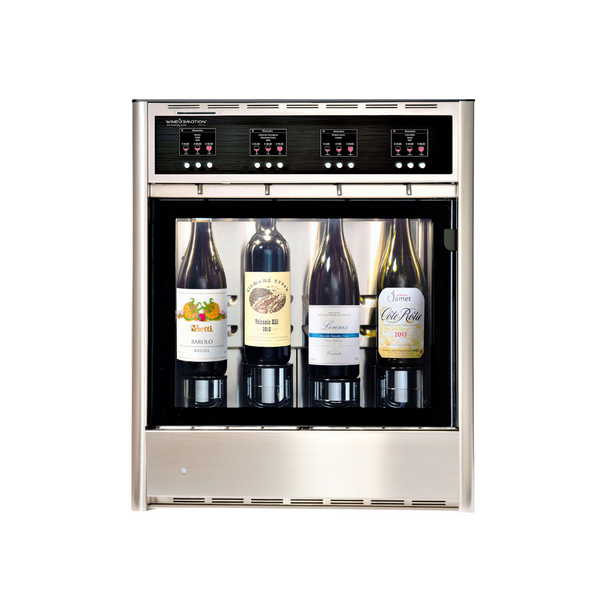

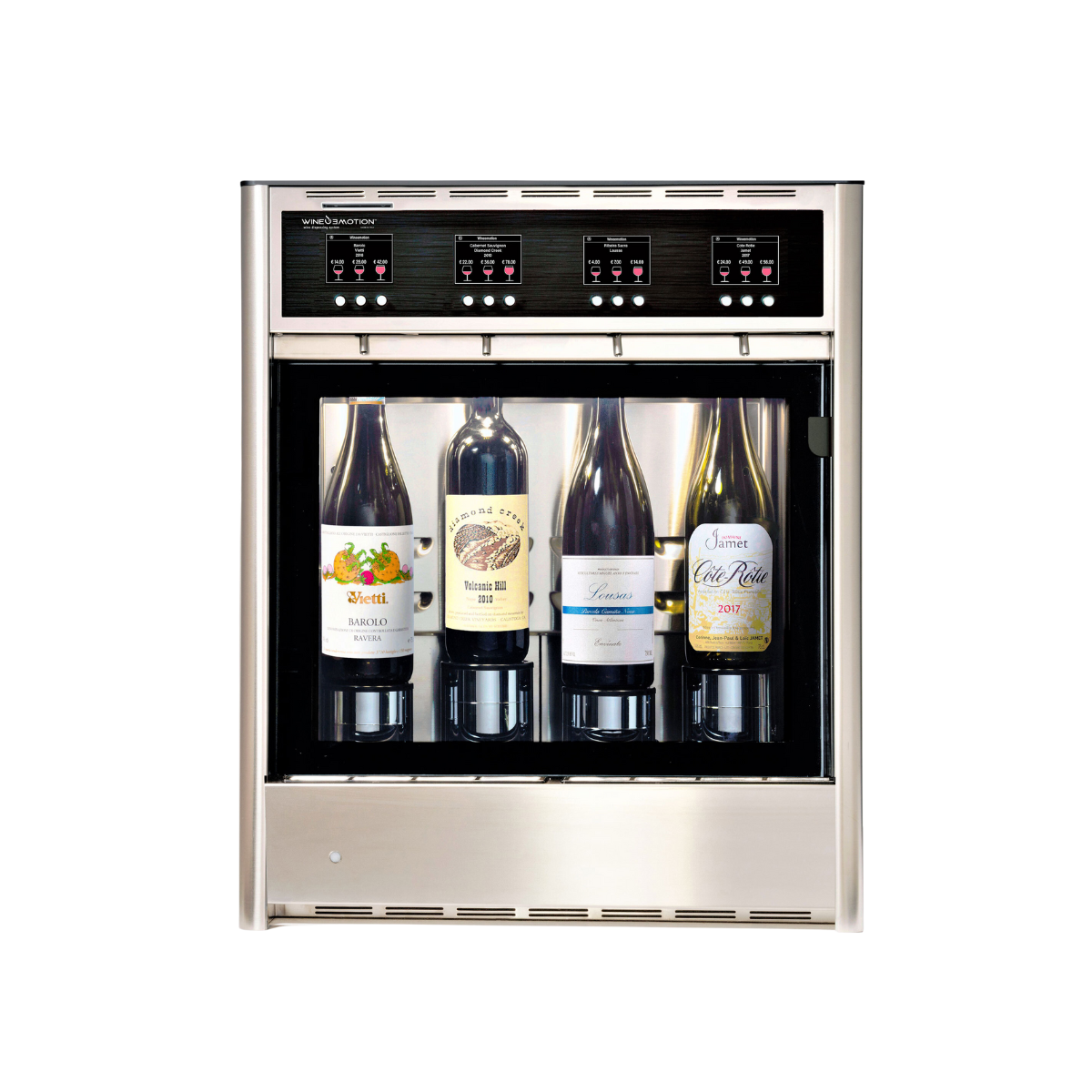

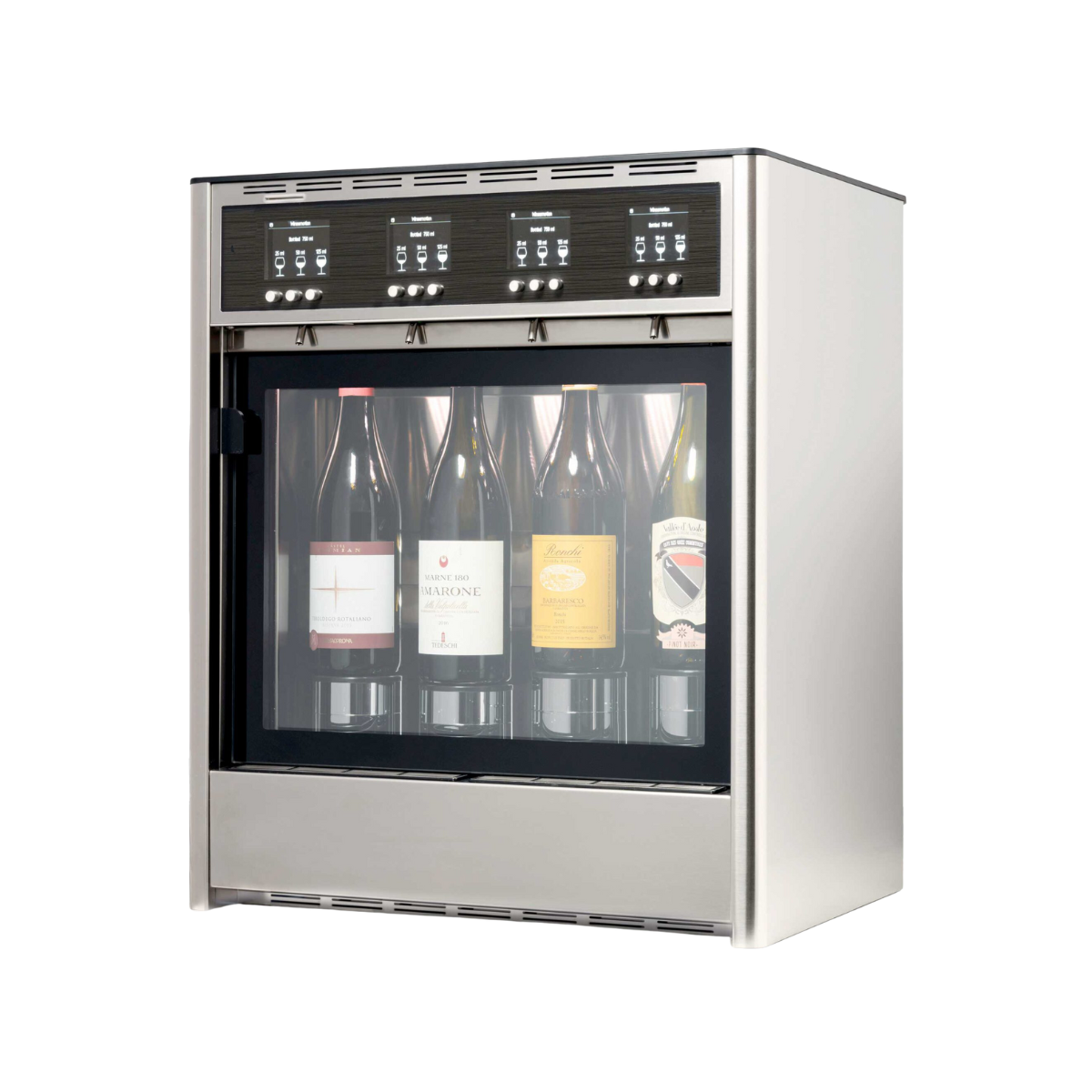

The Quattro Self model is designed to serve four bottles in 3 different dosages for each bottle via the self-service mode. Customers can dispense the wines themselves and activate the dispensing via the WineEmotion chip card, RFID or barcodes*. This model works alongside the Wineidea software to facilitate easier management of your customers and all aspects of your wine business.

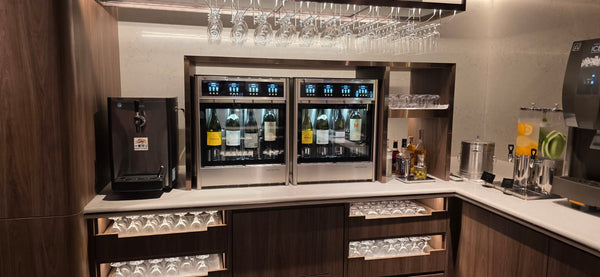

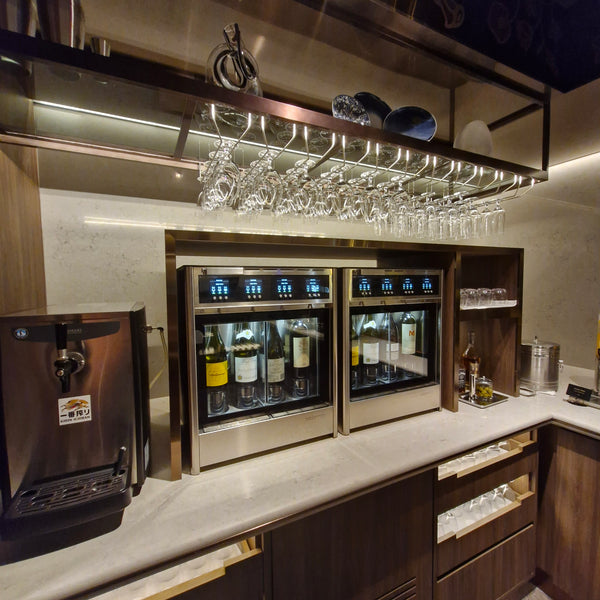

Ideal for pouring wine by the glass in bars, restaurants, and cellars with tasting, this model can be used in behind the bar mode (no wine card) or self-service with wine card (chip or RFID) or barcode reader. Ease of use and a design with attention to the smallest detail, contribute to making this model an exclusive solution.
Designed to preserve, refrigerate and dispense wines directly from the bottle to the glass, our wine dispensers guarantee the best quality of the wine product. The introduction of inert gases into the bottle (a separate add-on here), Nitrogen or Argon, allows the air to escape and thus prevents oxidation of the wine. For about four weeks, the taste and aromas remain unchanged and each glass is served in the ideal condition to enhance the quality of the product. Nitrogen and Argon are inert, colorless, and tasteless food-grade gases.
1. New Wine Tap Technology
The latest version of our Wine Tap will serve the purpose of preserving and pouring wine without altering the taste even better, with a new motorized pump that cleans all the residues from the nozzle. This will improve wine preservation and dispenser reliability.
2. Motion Sensors
In order to prolong the life of the displays and to save energy, this model is equipped with a motion sensor that activates the displays only when people are actually around it.
3. TFT Colour Display
This model features TFT color displays so that white and red wines can be quickly discerned at a glance.
4. Front air intakes
The new design with the frontal airflow allows heat to escape from the front vents and allows for it to be built into cabinets/ under counter.
Features:
Temperature: 6°C to 22°C (Dual Zone)
Dimensions HxWxD: 632mm x 528mm x 398mm
Pours: Up to three pour volumes through high-quality mechanical buttons
Connection Software: Connection between modules and software through LAN wire and WI/FI with TCP/IP protocol.
Door: Glass doors are treated with a special coating that reduces condensation
Lock: Automatic lock activated by Smart Card or RFID.
Lights: RGB LED
Weight: 42kg
Warranty: 2 years local warranty
Made in Italy
* Prices are exclusive of chip cards as it is based on quantity required. Contact us for further information and quotes.
