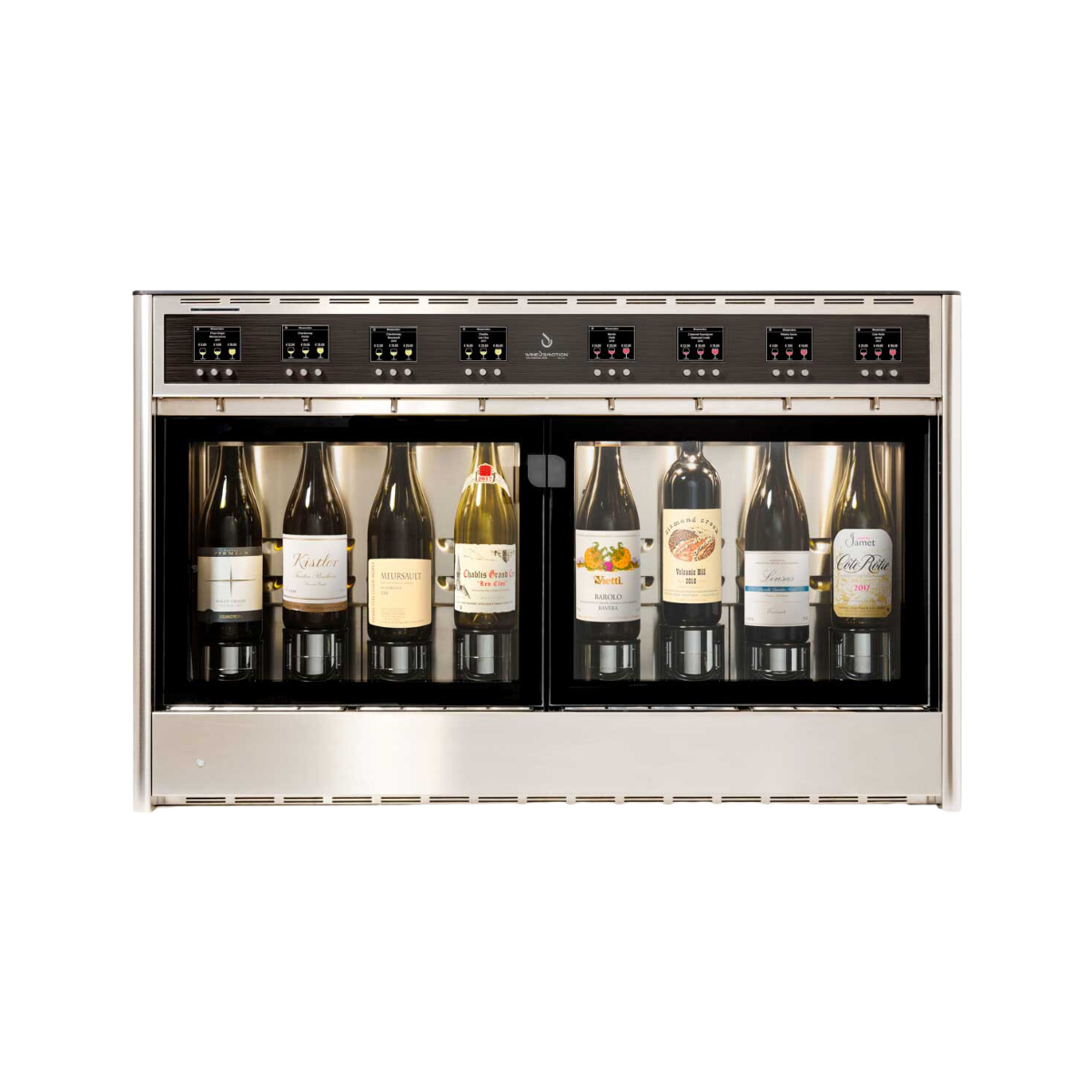

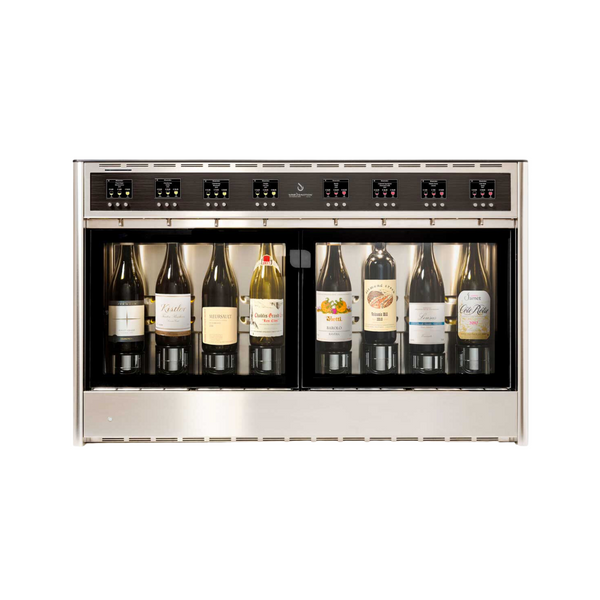

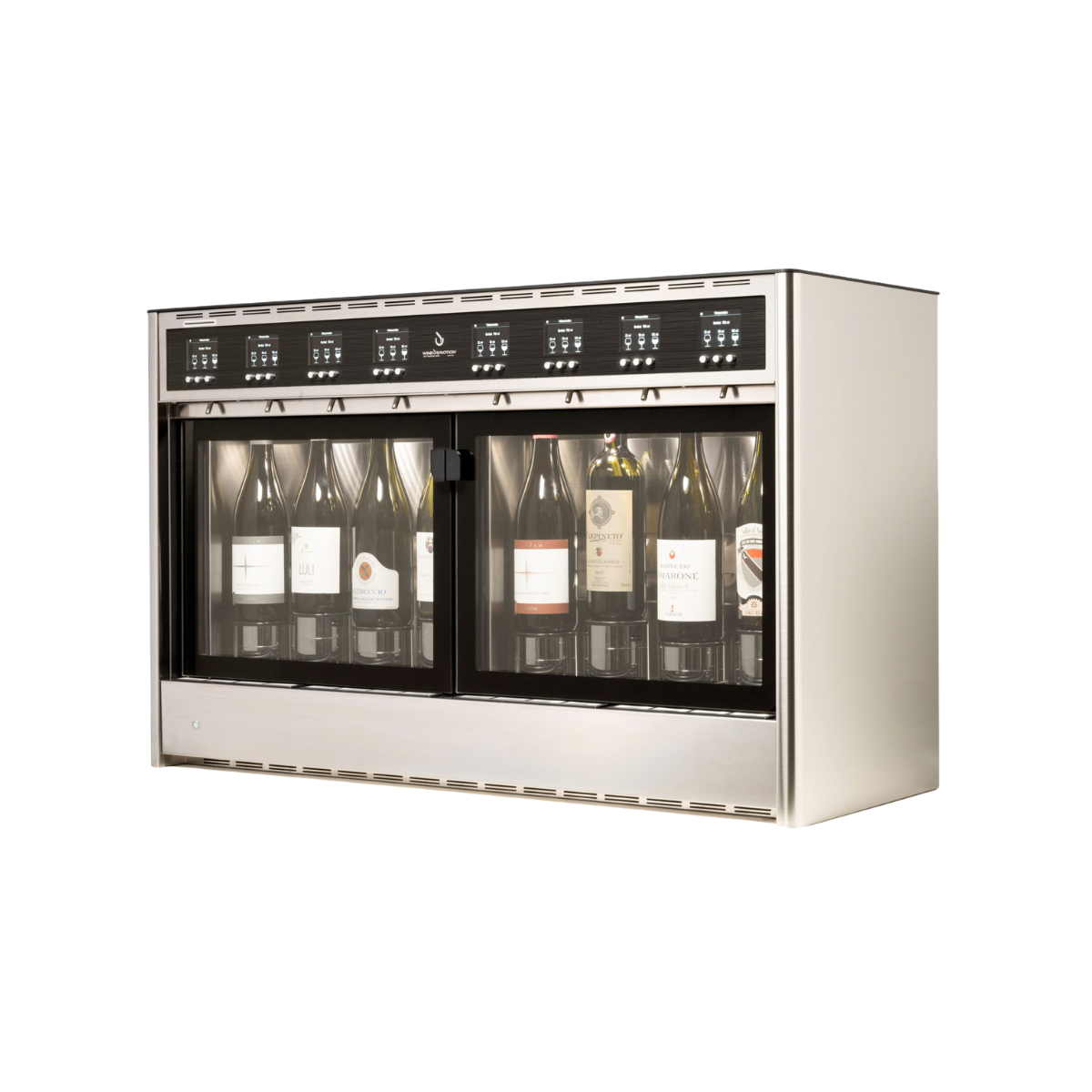

Wine Emotion 8 Bottles Self Serve Wine Dispenser – Otto Self (Dual Zone)

The Otto Self model is designed to serve eight bottles in 3 different dosages for each bottle via the self-service mode. Customers can dispense the wines themselves and activate the dispensing via the WineEmotion chip cards. This model works alongside the Wineidea software to facilitate easier management of your customers and all aspects of your wine business.

Ideal for pouring wine by the glass in bars, restaurants, and cellars with tasting, this model can be used in behind the bar mode (no wine card) or self-service with wine card. Ease of use and a design with attention to the smallest detail, contribute to making this model an exclusive solution.

Designed to preserve, refrigerate and dispense wines directly from the bottle to the glass, our wine dispensers guarantee the best quality of the wine product. The introduction of inert gases into the bottle (a separate add-on here), Nitrogen or Argon, allows the air to escape and thus prevents oxidation of the wine. For about four weeks, the taste and aromas remain unchanged and each glass is served in the ideal condition to enhance the quality of the product. Nitrogen and Argon are inert, colorless, and tasteless food-grade gases.

1. New Wine Tap Technology

The latest version of our Wine Tap will serve the purpose of preserving and pouring wine without altering the taste even better, with a new motorized pump that cleans all the residues from the nozzle. This will improve wine preservation and dispenser reliability.

2. Motion Sensors

In order to prolong the life of the displays and to save energy, this model is equipped with a motion sensor that activates the displays only when people are actually around it.

3. TFT Colour Display

This model features TFT color displays so that white and red wines can be quickly discerned at a glance.

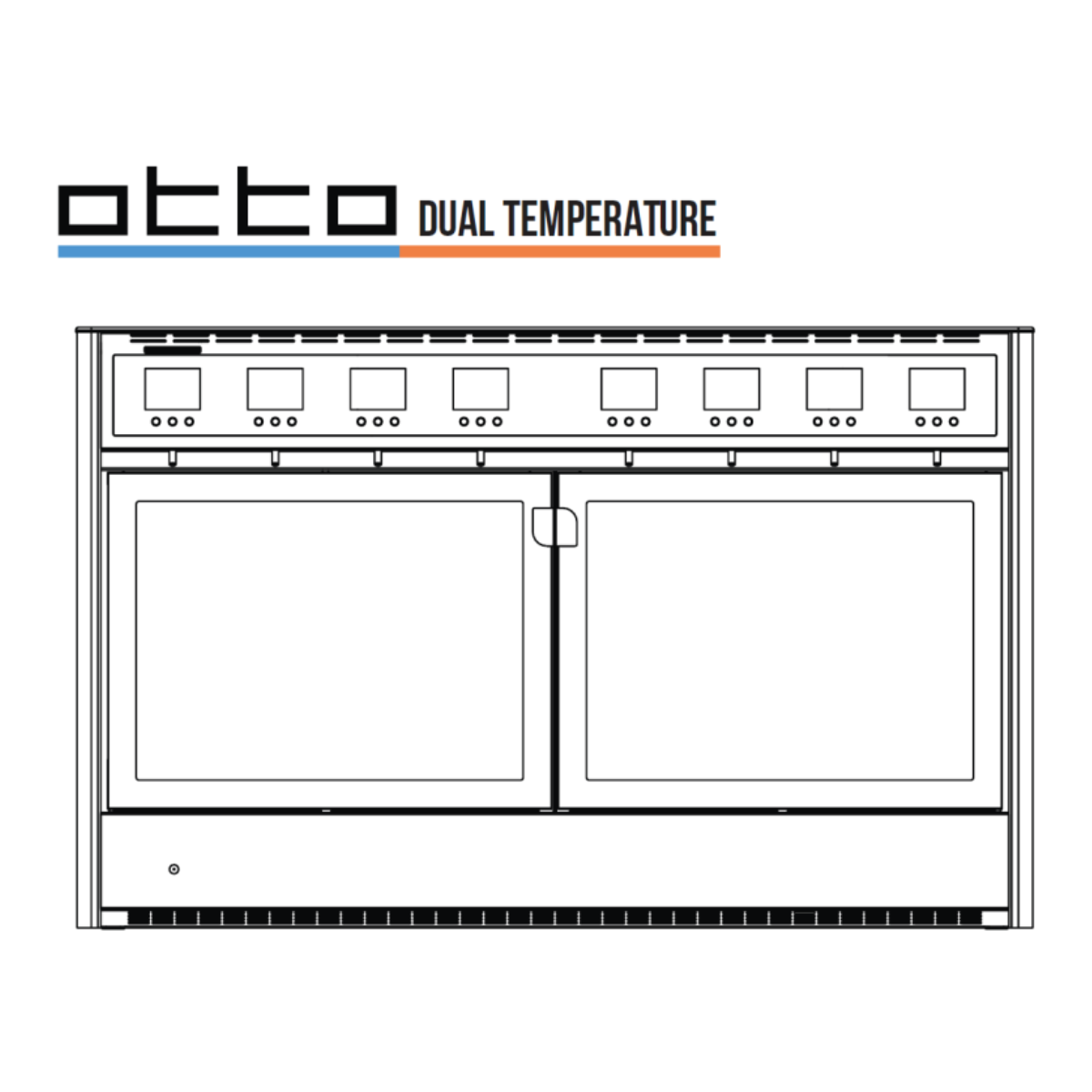

4. Two Independent Cooling Zones

The eight-bottle dispenser features two separate areas with independent compressors and cooling system to ensure a completely separated management of the temperatures. Silent, reliable, and powerful, the new cooling system will keep your wines at the right temperature.

5. Front air intakes

The new design with the frontal airflow allows heat to escape from the front vents and allows for it to be built into cabinets/ under counter.

Features:

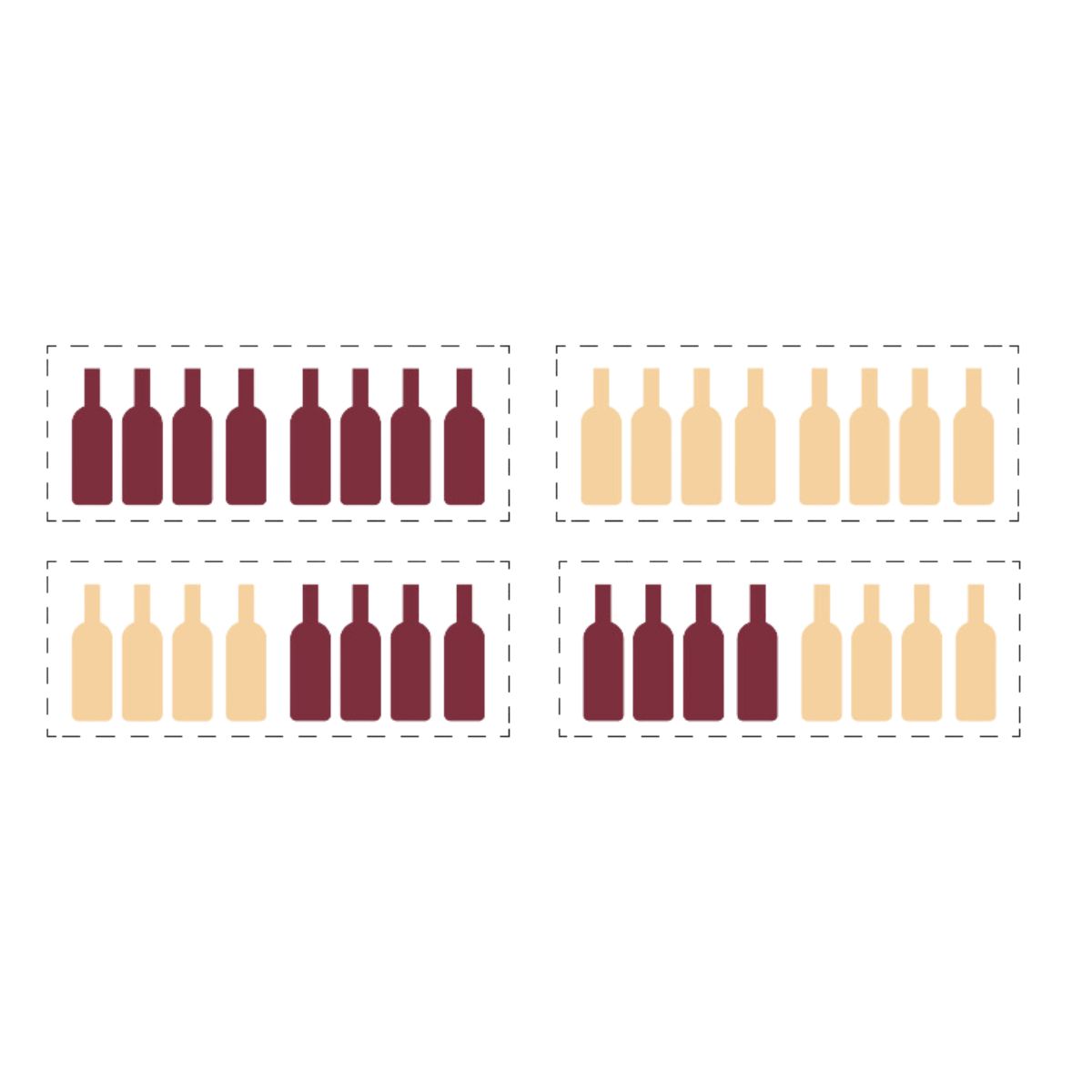

Temperature: 6°C to 22°C (Dual Zone), Without divider from 15°C to 22°C

2+6 Divider: with Divider (Left Side), 6-8 (2 bottles) & 15-17°C (2 bottles), without divider lowest 15°C single zone (4 bottles)

Right side works without divider 6°C to 22°C.

Dimensions HxWxD: 632mm x 1010mm x 398mm

Pours: Up to three pour volumes through high-quality mechanical buttons

Connection Software: Connection between modules and software through LAN wire and WI/FI with TCP/IP protocol.

Door: Glass doors are treated with a special coating that reduces condensation

Lock: Automatic lock activated by Smart Card

Lights: RGB LED

Weight: 71kg

Warranty: 1 year local warranty

Made in Italy

* Package includes 1x Wine Emotion Otto Self, 1x WineIdea Ready software (for small-medium installation), 1x Counter Chip Card Reader and 50x chip cards .

Contact us for further information and quotes.
